Configuring the Switch
3-200
3
Click the Edit button for a group entry to open the detailed configuration window.
Enter the IP address of a real interface on this router to make it the master virtual
router for the group. Otherwise, enter the virtual address for an existing group to
make it a backup router. Click Add IP to enter an IP address into the Associated IP
Table. Then set any of the other parameters as required, and click Apply.

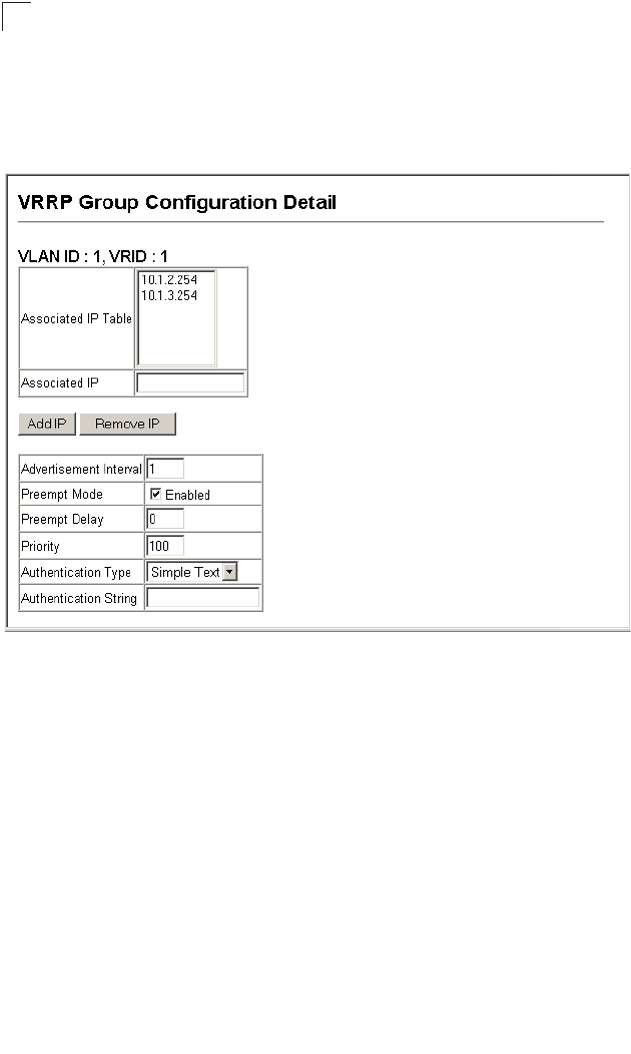

Figure 3-115 VRRP Group Configuration Detail
